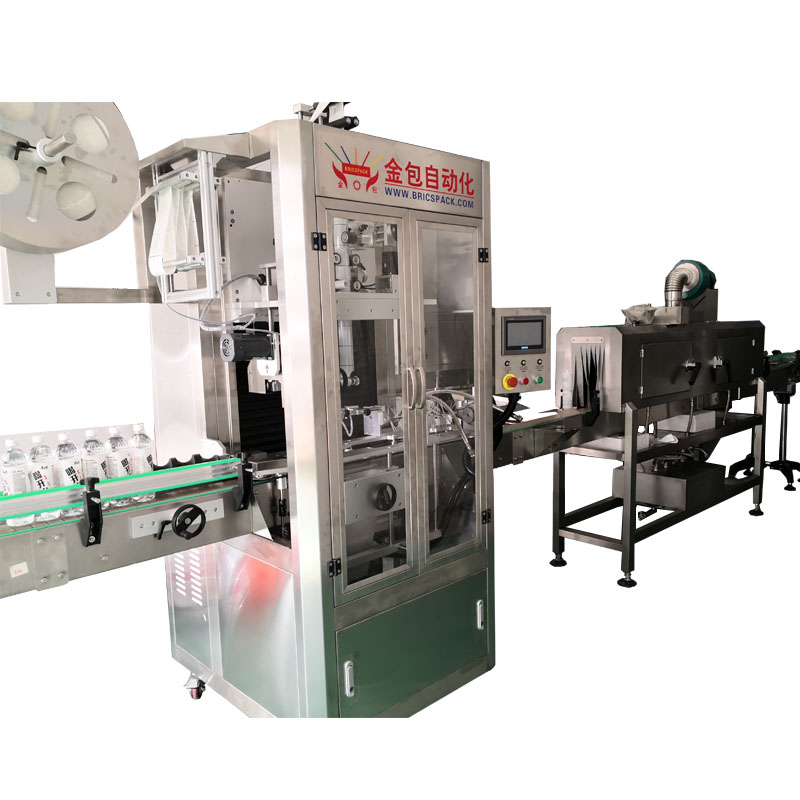

Central guide pillar: adopts POM material , more durable and stable to transmit labels.
Control cabinet: button and touch screen control, easy operation.
Label-controlling electric-eye shelf: unique combination of tail and electric to improve the precision of cutting of membrane materials.
Synchronous bottle screw: mking stable transmission for bottles.
Drive system: With high power of Servo motor, more forceful.
Modular design：Guarantee to change all the size within 10 minutes, and no using of auxiliary tools.
Technology Parameter
机器型号（Model）
QB-4040M
QB-4075M
QB-4040H(瓶口Neck)
QB-4040H（加大Enlarge）
套标速度(Speed)
40~150BPM
150~250BPM
40~250BPM
30~120BPM
设备尺寸（Size LWH）
2000mm*1050mm*2000mm
2000mm*1050mm*2000mm
2000mm*1050mm*2000mm
2000mm*1250mm*2000mm
重量(Weight)
550kg
600kg
650kg
750kg
主机功率(Power)
1.5kw
2kw
1.5kw
2kw
电压标准(Voltage)
220/380V, 50/60Hz
220/380V, 50/60Hz
220/380V, 50/60Hz
220/380V, 50/60Hz
套标效率(Accuracy)
≥99.9%
≥99.9%
≥99.5%
≥99.5%
标签材质(Material)
PVC, PET, OPS etc.
PVC, PET, OPS etc.
PVC, PET, OPS etc.
PVC, PET, OPS etc.
标签厚度(Thickness)
0.03mm~0.13mm
0.03mm~0.13mm
0.03mm~0.13mm
0.04mm~0.13mm
标签长度(Length)
30~250mm
30~250mm
28~320mm
40~325mm
标签折径(Flat width)
Max.200
Max.200
Max.100
Max.320
纸筒内径(Inner tube Dia.)
3’’~10’’Adjustable
3’’~10’’Adjustable
5’’~10’’Adjustable
3’’~10’’Adjustable
标卷外径(Label Outer Dia.)
500mm
500mm
500mm
400mm
产品高度(Bottle height)
Max.320mm
Max.320mm
Max.350mm
Max.350mm
产品直径(Bottle Dia.)
25~124
25~124
22~60
90~205
适用瓶型(Bottle Style)
圆瓶，方瓶，扁瓶，异形瓶
(Round, Square, Flat, Curved)
圆瓶，方瓶，扁瓶，异形瓶
(Round, Square, Flat, Curved)
瓶口/瓶身长标
Neck/Long sleeve label
非标加大瓶型
Enlarge bottle
产品类型(Bottle type)
矿泉水、饮料、啤酒、白酒、乳制品、化妆品、粮油、酱料、医药用品等液体，膏体，粉末，颗粒以及空瓶包装
Mineral water, Beverage, Beer, Wine, Dairy products, Cosmetics, Cooking oil, Sauces, Medical and other liquids, paste, powder, granules and empty bottle packaging.
