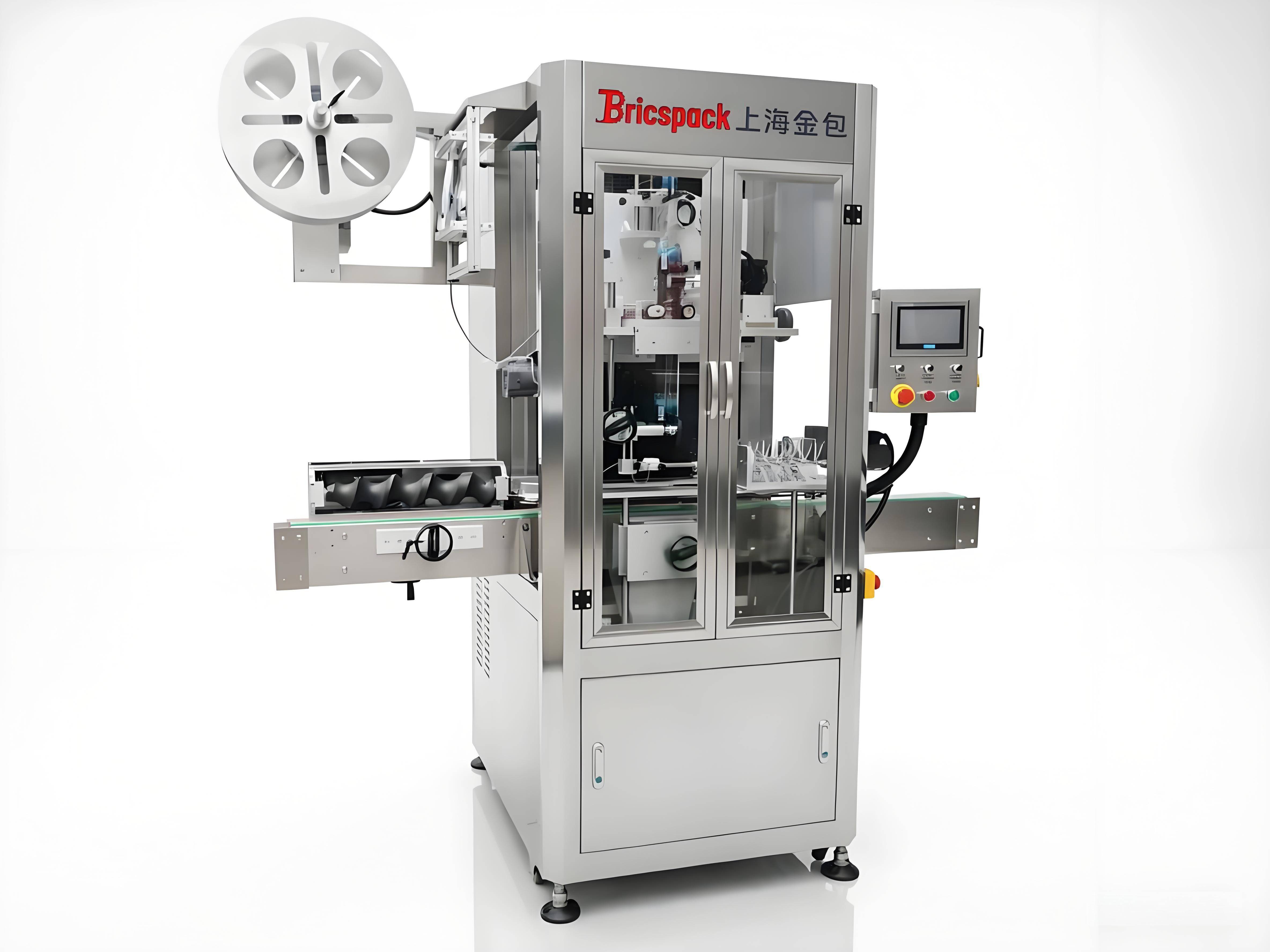

Fully automatic labeling machine

Fully automatic labeling machine
Model:QB-4040H

The machine features a stainless steel, fully enclosed waterproof body, which is corrosion-resistant, durable, and easy to maintain. Equipped with rotary cutting technology and a double-sided adjustable cutter head, coupled with a POM center guide post, it ensures smooth and durable label conveyance. The unique integrated structure of the tail fin and electric eye frame achieves automatic detection and positioning, providing higher precision in cutting points. The synchronous bottle-separating screw and high-power servo motor work together to ensure stable and powerful bottle conveyance and label feeding processes. The entire machine adopts a modular design, allowing for specification changes within 10 minutes without tools, significantly improving production change efficiency. The control method combines buttons and a touch screen, making operation intuitive and simple.

Category: sleeveLabeling
Fully automatic labeling machine

Fully automatic labeling machine

Key Features

Theentire machine is crafted from stainless steel and features a fully enclosed waterproof design, which not only presents a sleek and elegant appearance but also ensures convenient maintenance and high safety levels, guaranteeing long-term use without the risk of rusting
Equippedwith rotary cutting technology and featuring a double-sided blade, it achieves durable and stable cutting performance. The cutter head can be flexibly adjusted according to needs
Thecentral guide post is made of high-strength POM engineering plastic, which is wear-resistant and durable, ensuring ultimate stability during the label conveying process
Thecontrol unit adopts a dual-mode control system of "buttons + touch screen", featuring a user-friendly interface and simple and intuitive operation logic, effectively lowering the operational threshold
Labelcontrol electric eye frame: The original integrated structure of the tail fin and electric eye frame supports automatic detection and positioning, significantly improving the positioning accuracy of the film material cutting point
Synchronousbottle-separating screw Equipped with a precise synchronous bottle-separating screw, ensuring smooth and accurate spacing of bottles during high-speed conveyance
Drivesystem: Utilizing a high-power servo motor for driving, the labeling action is stable and powered, ensuring labeling quality even at high speeds
Fullymodularized structural design, no auxiliary tools required, enabling quick switching between products of different specifications within 10 minutes, significantly enhancing the efficiency of order change on the production line

Technical Specifications

Comprehensive technical details for informed decision-making

size
2000mm*1050mm*2000m
weight
650kg
power
1.5kw
voltage
220/380V,50/60Hz
Label material
PVC. PET. OPS etc.
Label thickness
0.03mm-0.13mm
label length
28~320mm
Label fold diameter
Max.100
Bottle height
Max.350mm
bottle diameter
22-60mm
speed
6000~9000BPH

Core Parts

Precision-engineered modules working in perfect harmony

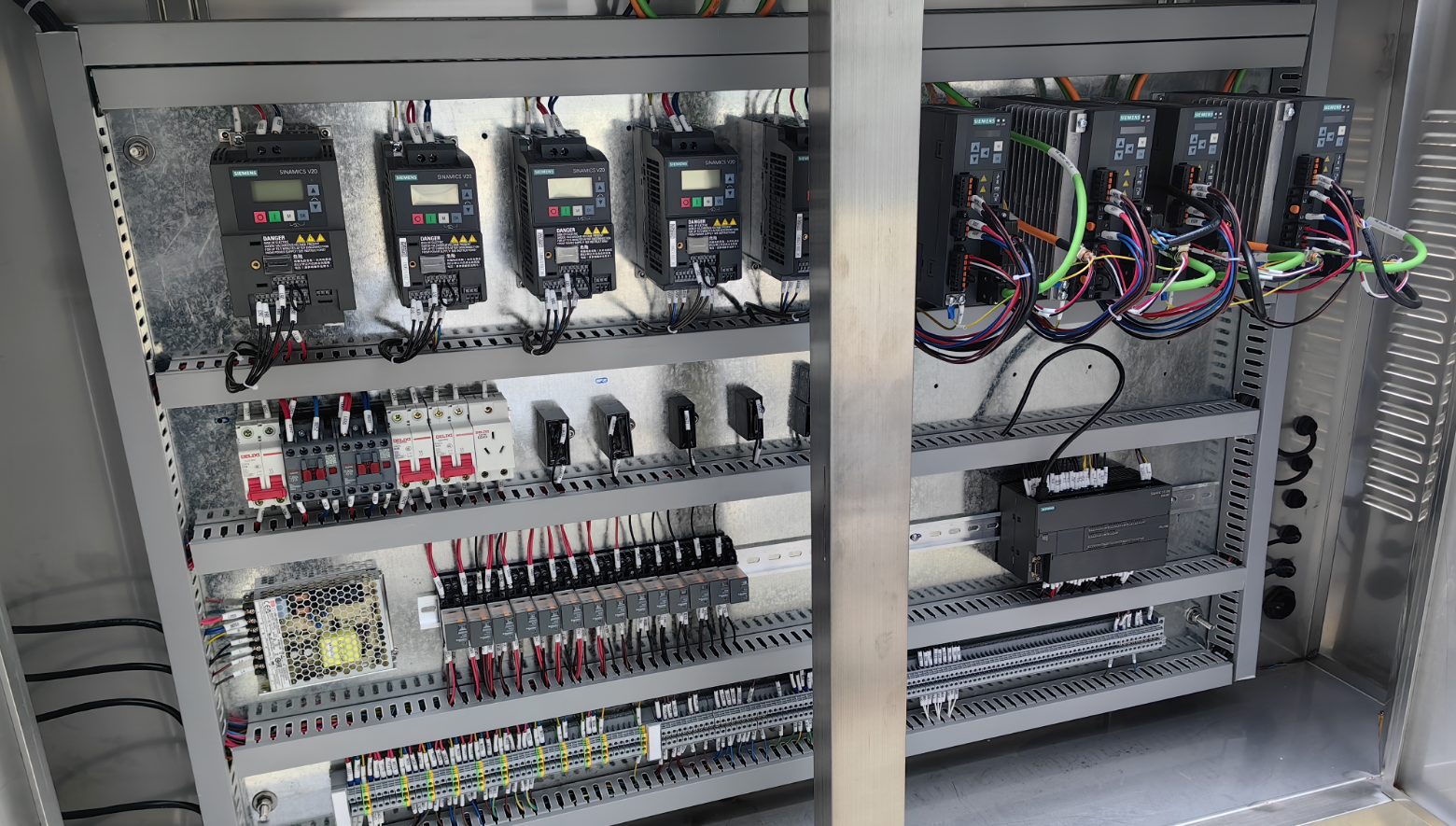

distribution box
Core Components 1/5

distribution box

The circuit layout is neat and standardized

The circuit layout is neat and standardized
distribution box

distribution box

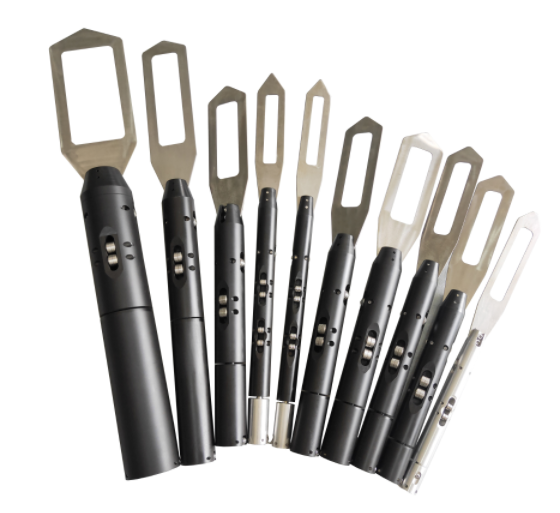

Center column

Center column

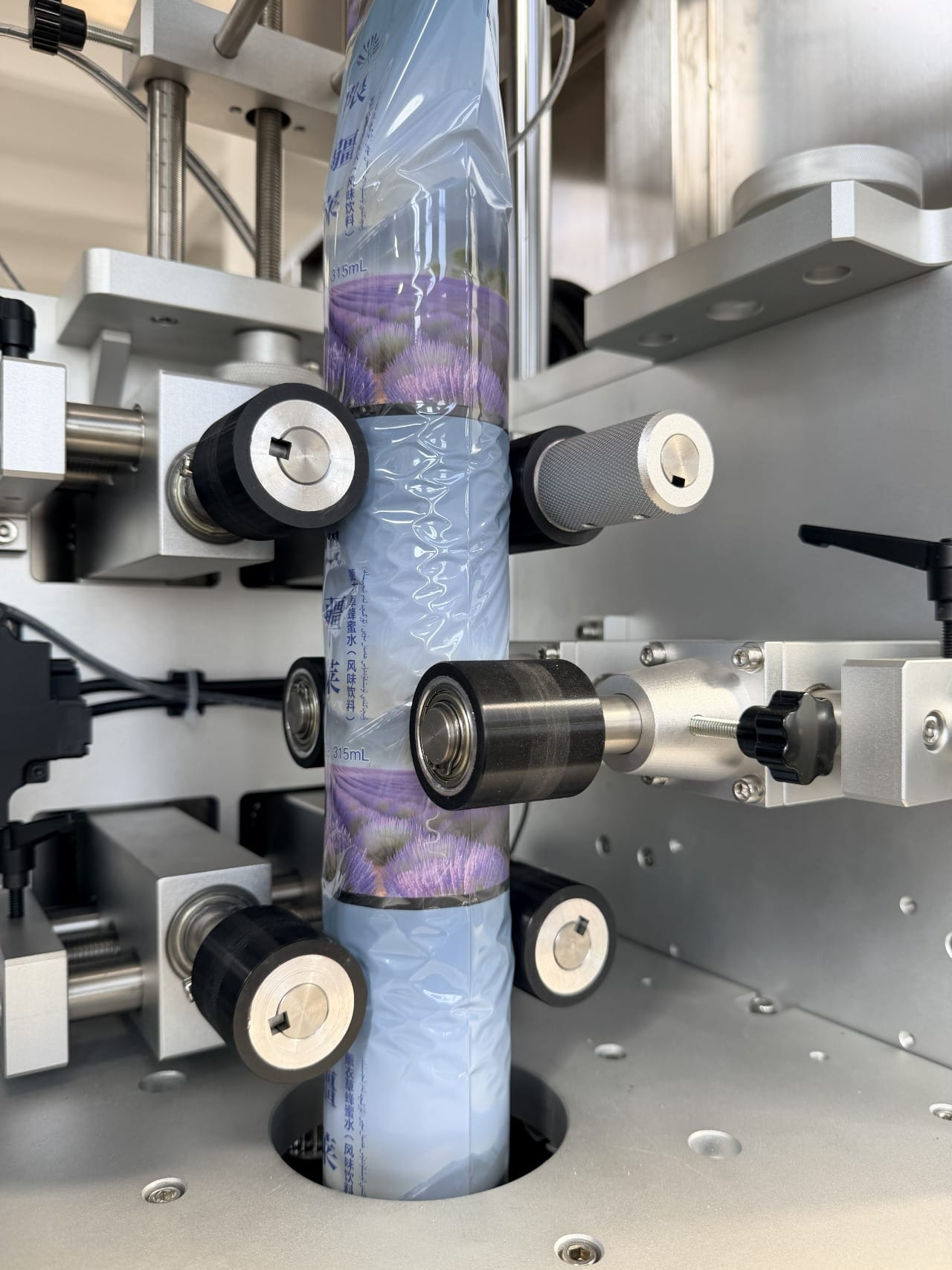

Center column + label

Center column + label

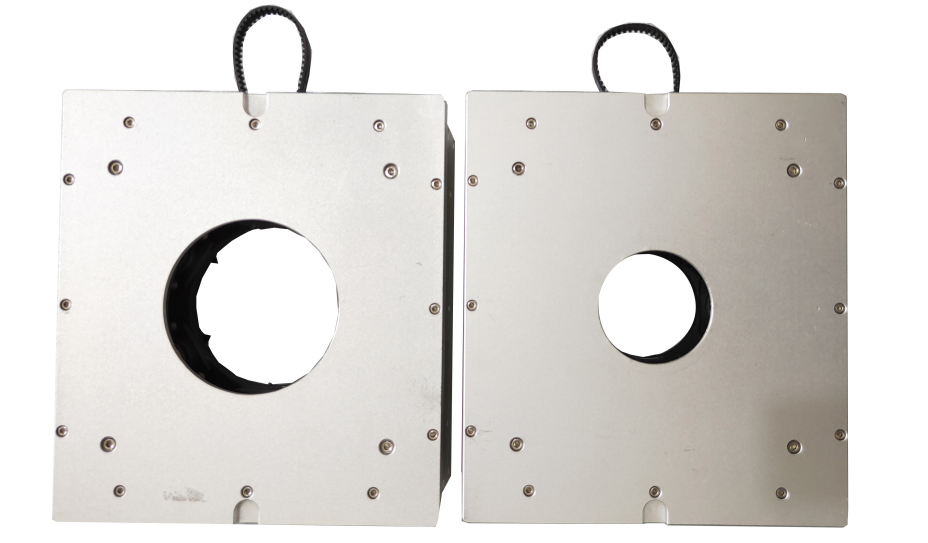

Rotating cutter head

Rotating cutter head

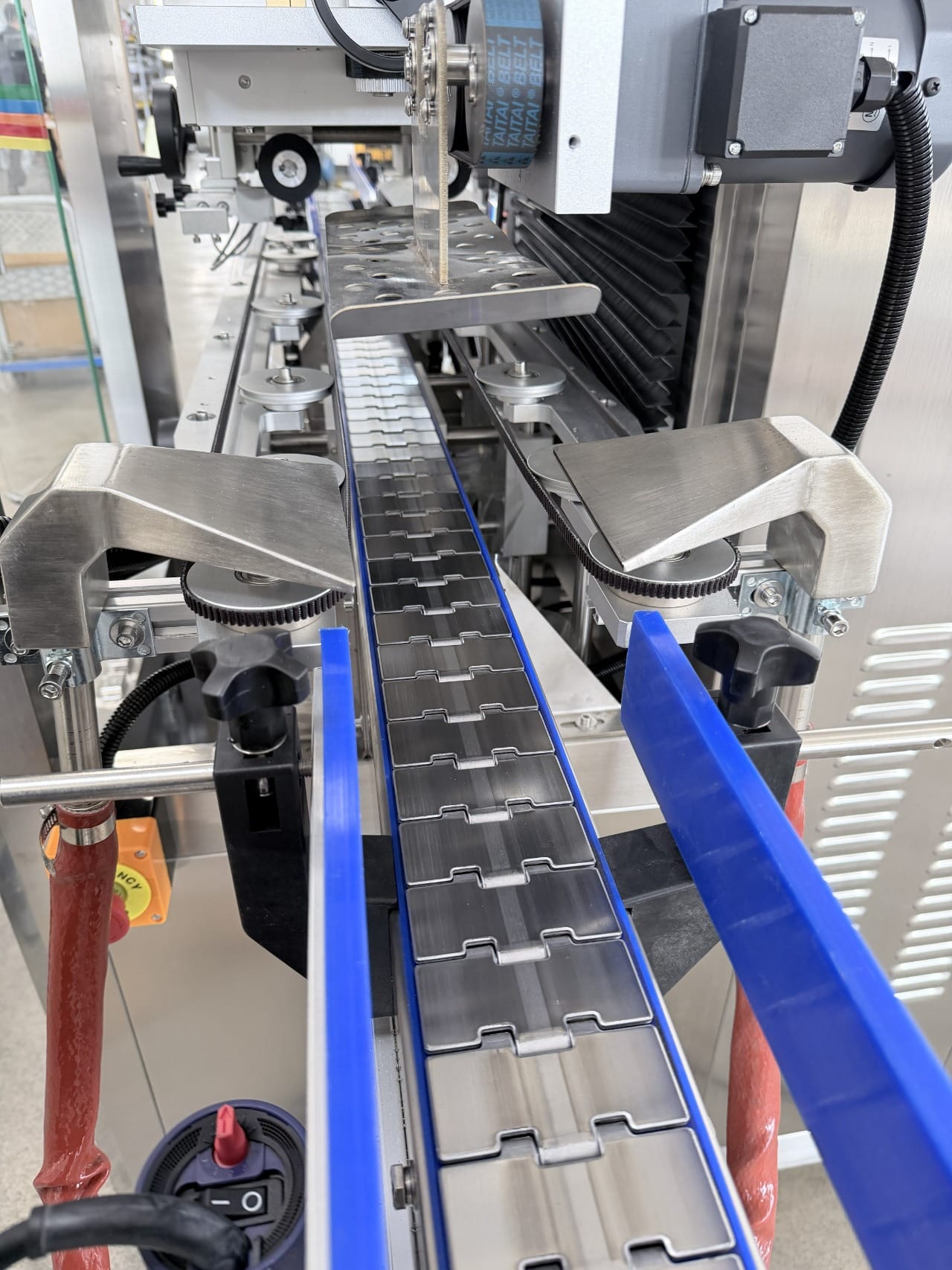

discharge outlet

discharge outlet

Auxiliary Equipment

Enhances the efficiency and stability of the entire production line

Electric heat shrinking oven

Electric heat shrinking oven

For various bottle shapes (such as round, square, flat, and other irregular containers), the new shrinking tunnel boasts convenient adjustment and maintenance capabilities, ensuring uniform and stable shrinking effects. The equipment is specially designed, featuring a three-section independently adjustable hot-air shrinking oven, which effectively enhances energy utilization efficiency and achieves superior energy-saving performance. The surface of the products after shrinking treatment is dry without water droplets, allowing them to proceed directly to the subsequent packaging process. The entire machine adopts a stainless steel insulation structure, which is not only energy-saving and environmentally friendly but also meets international safety standards.
View Detail
Electric heat shrinking oven

Electric heat shrinking oven

For various bottle shapes (such as round, square, flat, and other irregular containers), the new shrinking tunnel boasts convenient adjustment and maintenance capabilities, ensuring uniform and stable shrinking effects. The equipment adopts a modular design, allowing multiple shrinking furnaces to be combined according to speed and bottle shape, with segmented temperature control, effectively enhancing energy utilization efficiency and achieving superior energy-saving performance. The surface of the products after shrinking treatment is dry and free of water droplets, enabling direct entry into subsequent packaging processes. The entire machine adopts a stainless steel insulation structure, which is not only energy-saving and environmentally friendly but also meets international safety standards.
View Detail
Steam shrinkage furnace

Steam shrinkage furnace

The new steam shrinking furnace is suitable for irregular bottle shapes such as round bottles, square bottles, and flat bottles. The nozzle is adjustable in three sections, and the height, front and rear position, and air volume of each section can be independently adjusted to achieve even and uniform shrinkage. The entire machine is made of stainless steel, with a double-layer insulation structure, and equipped with a stainless steel water tray at the bottom, meeting national safety standards
View Detail
steam generator

steam generator

This equipment adopts a compact and lightweight H-shaped design, and has obtained multiple national patents. It boasts high thermal efficiency and rapid temperature rise, effectively saving energy and operational costs. With a high degree of automation, it is easy to operate. The H-shaped electric heating steam generator is equipped with multiple safety protection functions such as pressure protection, low liquid level alarm, and overpressure protection. It adopts a modular design, facilitating easy disassembly and user-friendly maintenance
View Detail
