 当前位置:首页 > QB-AD12 风干机

风干机

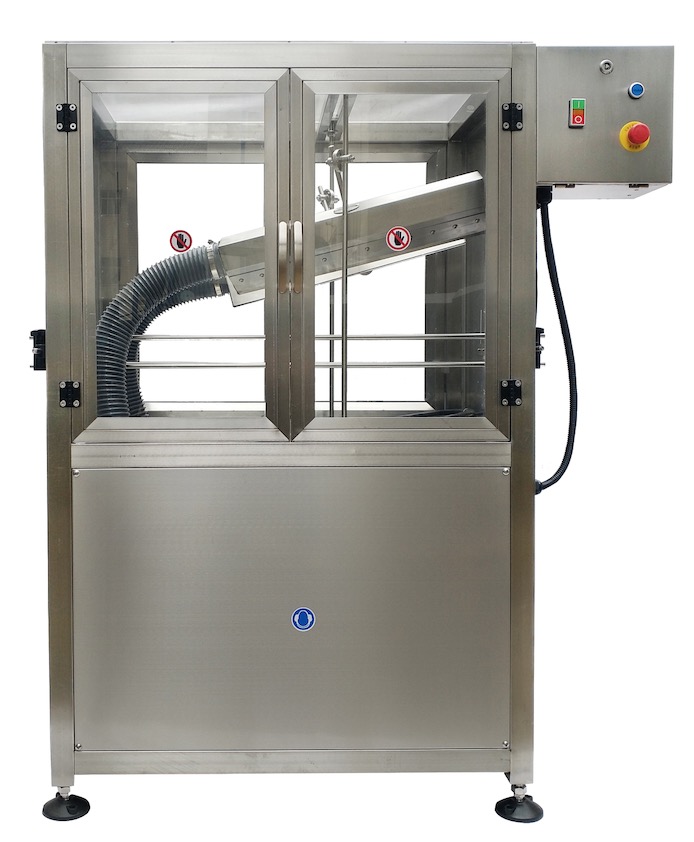

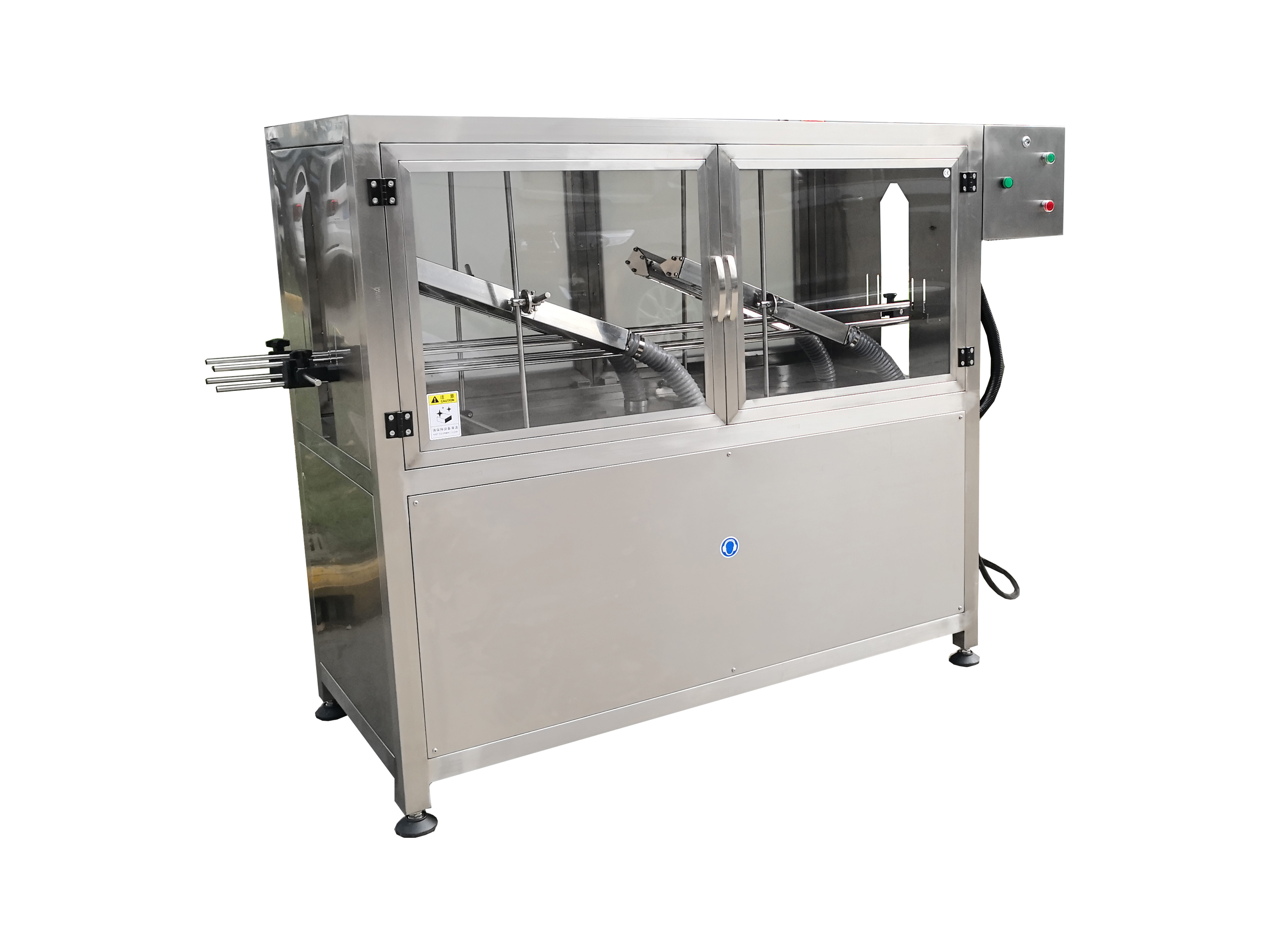

风干机 Air Dryer Machine

未标题-2


设备特性描述:

吹干机主要用于饮料、啤酒、医药、化妆品、葡萄酒、红酒等自动包装线,也适用于各种容器、瓶、杯、罐、罐、碗等,可以直接与您的蒸汽隧道或生产线串联。

热空气通过过滤器进入高压鼓风机,然后通过管道进入出风口。

风干装置由风机将风力吹向风刀,风刀将空气均匀地吹到瓶子上。 由于风刀口只有0.5mm宽的长缝,吹出来的风很大,可以均匀有效地吹干瓶身水分.

Air dryer machine characteristics:

This machine mainly used for automatic packaging line such as beverages,beer, pharmaceutical , cosmetic,wine, red wine and so on,  which also compatible with wide range of containers,bottle,cup,,jar,can,bowl,etc. Can directly inline with your steam tunnel or production line .

Hot air through the filter into high-pressure blower, and then through the pipe into the air outlet.

The air-drying device is blown by the air blower to the air knife, and the air is evenly blown onto the bottle by the air knife. Since the wind knife edge is only a long slit of 0.5 mm width, the wind coming out is very strong. It can evenly and effectively drying the water attached on the bottle body.


技术参数 Technology Parameter

机器型号 Model

QB-130AD

QB-12AD

QB-24AD

QB-26AD

风机功率 Power

5.5kw*1

5.5kw*1

4kw*2

5.5kw*2

电压 Voltage

380V, three phase 50Hz

380V, three phase 50Hz

380V, three phase 50Hz

380V, three phase 50Hz

风刀尺寸 Air knife size

蜘蛛手Spider claws style*30

600mm*2

500mm*4

400mm*6

设备尺寸 Dimension

1100mm*550mm*1500mm

1100mm*550mm*1500mm

1500mm*550mm*1500mm

2000mm*550mm*1500mm

重量 Weight

120kg

120kg

180kg

220kg

生产速度(瓶高*产量)

Capacity (Height*speed)

H100*100BPM

H100*100BPM

H150*200BPM

H200*250BPM

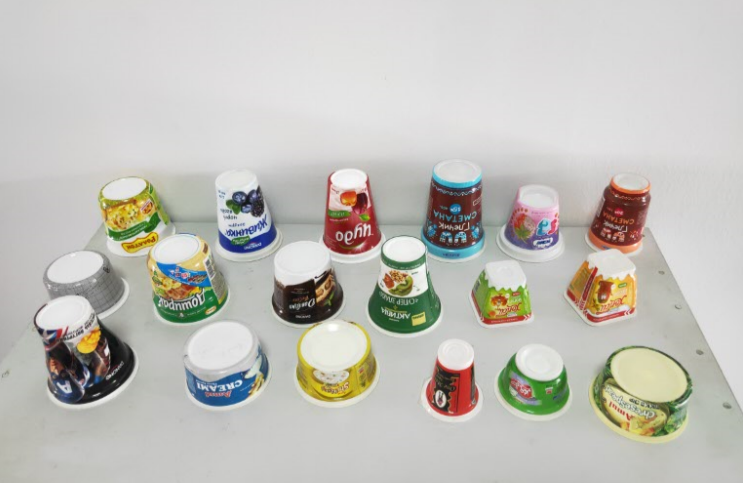

瓶子样品 Bottle samples

5
