 当前位置:首页 > QB-1000ET电热炉

瓶口收缩炉

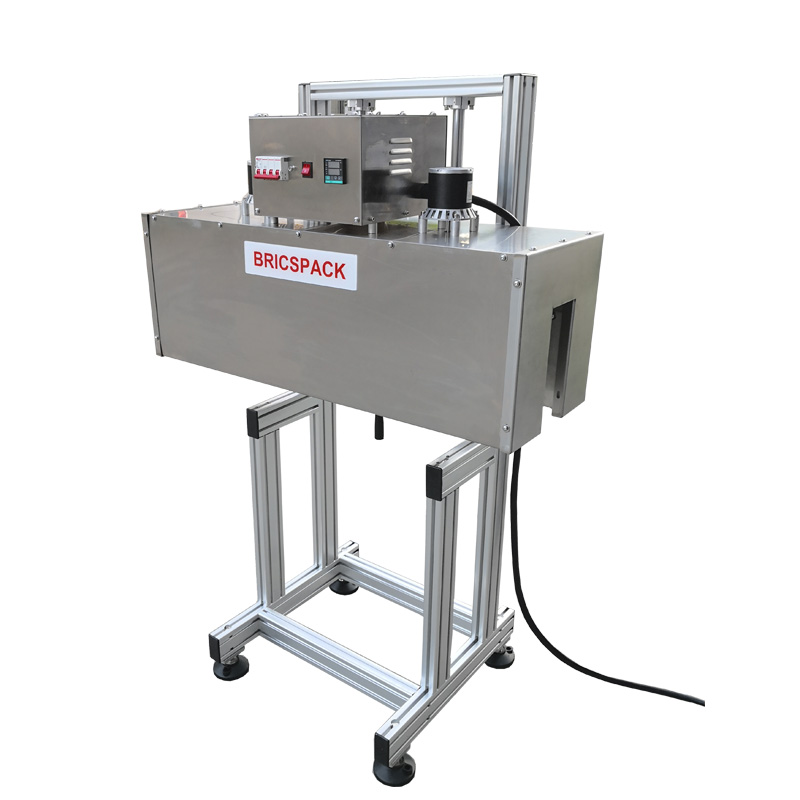

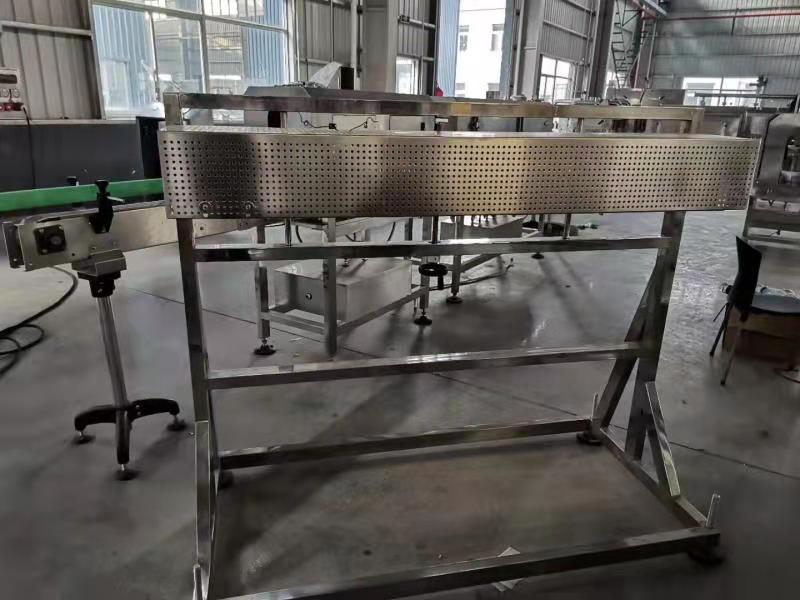

QB-1000ET 电热收缩炉  Electrical Heat Shrink Tunnel

网带收缩

设备特性描述:

对于不同的不规则的圆瓶、方瓶、扁瓶等,新型收缩通道易于调整和维护, 它可以完成均匀的收缩。

特殊设计,热风收缩炉三段独立可调,节能效果更佳。 产品收缩后外部无水珠,可直接包装。

整机采用不锈钢保温,既节能又符合国际安全标准。

Electrical heating shrink tunnel characteristics:

In case of different and irregular round bottles, square bottles and flat bottles etc, the new-style shrinking tunnel is easy to adjust and maintain. It has an even shrinking.

With special design, the three segments of hot air shrinking oven are independent and adjustable, which has the better effect of saving energy. After shrinkage, the outside of product has no water globules and it can be packed directly.

The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard.


技术参数 Technology Parameter

机器型号 Model

QB-1000ET

QB-1500ET

QB-2000ET

QB-3.4KW

额定功率 Power

6kw

8kw

12kw

3.4kw

电压 Voltage

380V, three phase 50Hz

380V, three phase 50Hz

380V, three phase 50Hz

220V, single phase 50Hz

温度 Temperature

80~220

80~220

80~240

80~240

尺寸 Dimension

1000mm*600mm*1650mm

1500mm*600mm*1650mm

2000mm*600mm*1650mm

500mm*400mm*200mm

重量 Weight

100kg

180kg

250kg

40kg

输送速度Conveyor Speed

0~20m/min

0~20m/min

0~35m/min

0~20m/min

客户样品 Bottle Samples

1
