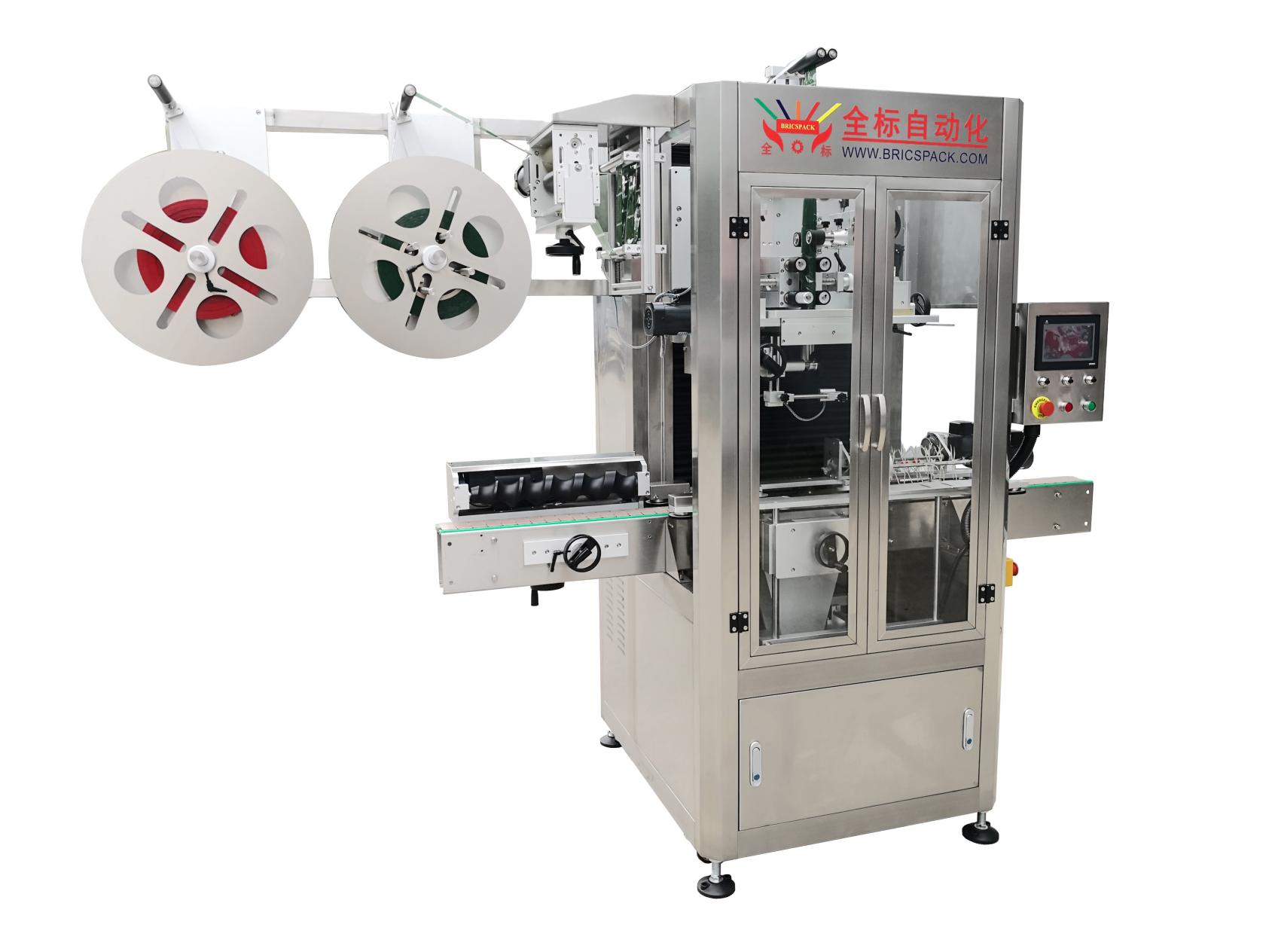

1.Stainless steel 304 of host machine by all cover:athletic, beautiful appearance，simple & safe maintenance, waterproof & rustproof.
2.New type Cutting design: Cutting is flat without chip, beautiful shrink effect.
3.Cutting Component: Cutting label does not adjust the sensor position, any label length can correct by HMI.
4.Central guide pillar: adopts POM material , more durable and stable to transmit labels.
5.Synchronous bottle screw: making stable transmission for bottles.
6.Label brush: more precision for casting labels.
7.Double drivers: H-shaped design of the institutions to ensure that the four-wheel drive, automatic centering, four constant pressure requirements; due to the design of same speed ratio, the machine fully realizes correct label transmission smooth, stable operation, fast label cutting process.
技术参数 Technology Parameter
机器型号(Model)
QB-4075H
QB-7510H
QB-1015H
QB-1020H
套标速度(Speed)
18000BPH
24000BPH
30000BPH
36000BPH
设备尺寸（Size LWH）
2000mm*1050mm*2000mm
2000mm*1050mm*2000mm
2000mm*1050mm*2000mm
2000mm*1050mm*2000mm
重量(Weight)
550kg
600kg
650kg
650kg
主机功率(Power)
2kw
2.5kw
3kw
4kw
电压标准(Voltage)
220/380V, 50/60Hz
220/380V, 50/60Hz
220/380V, 50/60Hz
220/380V, 50/60Hz
套标效率(Accuracy)
≥99.9%
≥99%
≥99%
≥99%
标签材质(Material)
PVC, PET, OPS etc.
PVC, PET, OPS etc.
PVC, PET, OPS etc.
PVC, PET, OPS etc.
标签厚度(Thickness)
0.03mm~0.13mm
0.03mm~0.13mm
0.03mm~0.13mm
0.03mm~0.13mm
标签长度(Length)
30~250mm
30~250mm
30~200mm
30~180mm
标签折径(Flat width)
Max.200mm
Max.200mm
Max.150mm
Max.150mm
纸筒内径(Inner tube Dia.)
3’’~10’’Adjustable
3’’~10’’Adjustable
3’’~10’’Adjustable
3’’~10’’Adjustable
标卷外径(Label Outer Dia.)
500mm
500mm
500mm
500mm
产品高度(Bottle height)
Max.320mm
Max.320mm
Max.320mm
Max.320mm
产品直径(Bottle Dia.)
30~124
30~124
30~100
30~100

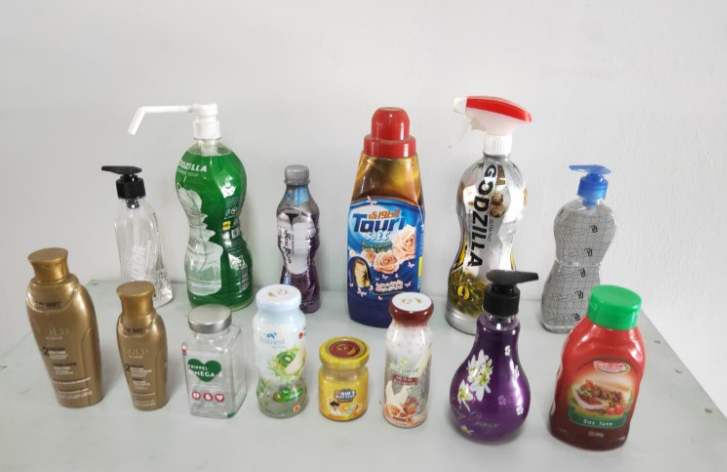

适用瓶型(Bottle Style)
圆瓶，方瓶，异形瓶
(Round, Square, Curved bottle)
圆瓶，方瓶
(Round, Square bottle)
圆瓶，方瓶
(Round, Square bottle)
圆瓶
(Round bottle)
产品类型(Bottle type)
矿泉水、饮料、啤酒、白酒、乳制品、化妆品、粮油、酱料、医药用品等液体，膏体，粉末，颗粒以及空瓶包装
Mineral water, Beverage, Beer, Wine, Dairy products, Cosmetics, Cooking oil, Sauces, Medical and other liquids, paste, powder, granules and empty bottle packaging.
