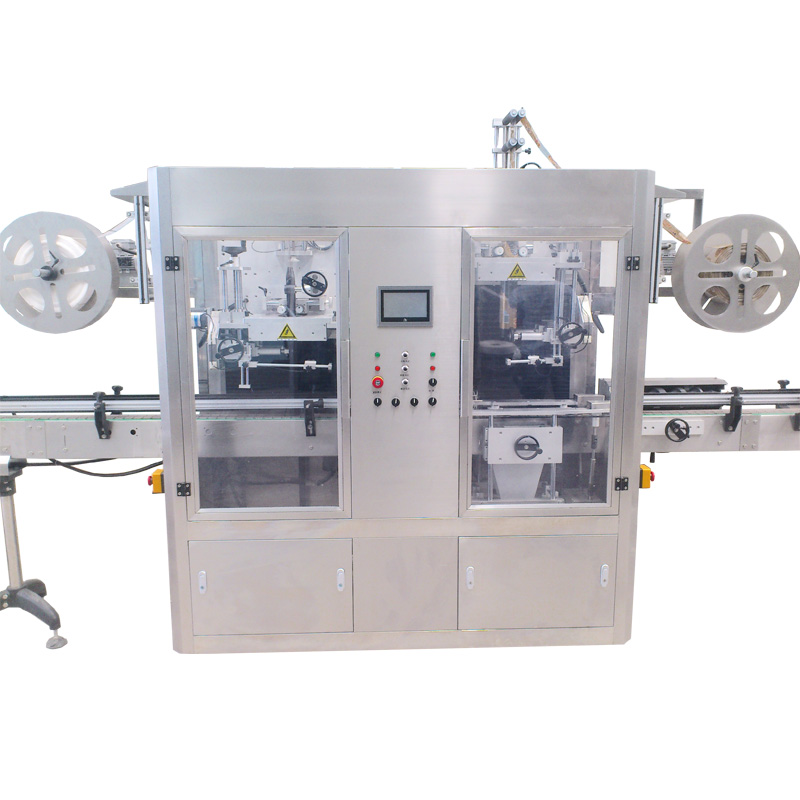

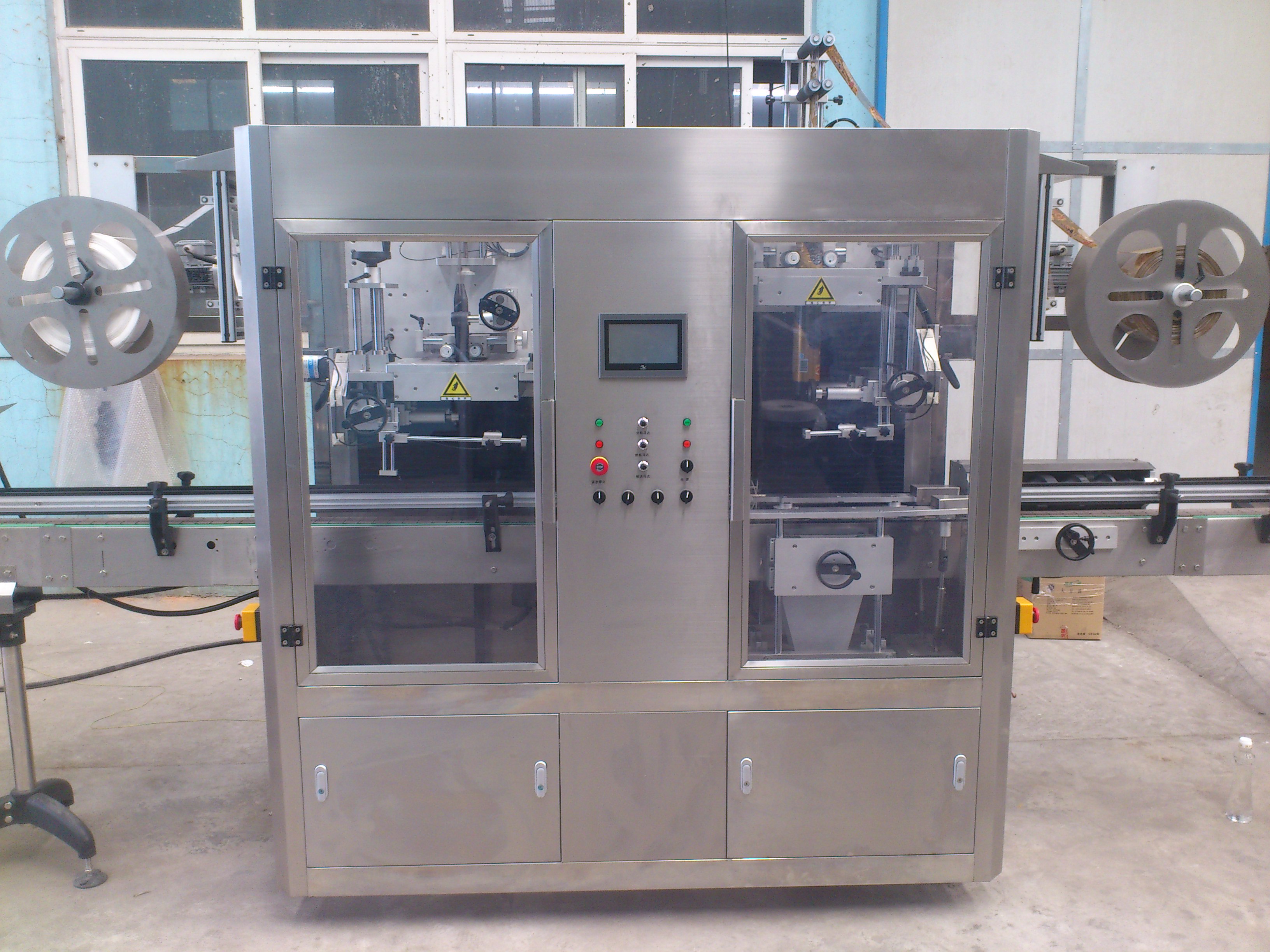

1.This machine is two heads configuration design of two machine combination, can satisfy bottle body & bottle neck shrink label at the same time with two separate labels.
2.Whole frame is made out of SUS304, east cleaning, water proof and beautiful appearance.
3.Unique cutter system, static and convolute technology, labeling cutting flat and shipshape.
4.Modular design, precise label inserting with high speed. 600BPM for 500ml round bottle with common labels.
5.High degree of automation control, easy operation and maintenance for single person.
6.The machine can drive with single head only or two heads together, effectively guarantee stable production line running. One machine with two function, not only save space, but also save cost.
技术参数 Technology Parameter
机器型号(Model)
QB-4040MM
QB-4075MH
QB-7510HH
QB-1015HH
套标速度(Speed)
6000~15000BPH
15000~24000BPH
30000BPH
36000BPH
设备尺寸（Size LWH）
3000mm*1050mm*2000mm
3000mm*1050mm*2000mm
3000mm*1050mm*2000mm
3000mm*1050mm*2000mm
重量(Weight)
800kg
800kg
900kg
900kg
主机功率(Power)
3kw
3.5kw
4.5kw
5kw
电压标准(Voltage)
220/380V, 50/60Hz
220/380V, 50/60Hz
220/380V, 50/60Hz
220/380V, 50/60Hz
套标效率(Accuracy)
≥99.9%
≥99.9%
≥99%
≥99%
标签材质(Material)
PVC, PET, OPS etc.
PVC, PET, OPS etc.
PVC, PET, OPS etc.
PVC, PET, OPS etc.
标签厚度(Thickness)
0.03mm~0.13mm
0.03mm~0.13mm
0.03mm~0.13mm
0.03mm~0.13mm
标签长度(Length)
30~250mm
30~250mm
30~250mm
30~250mm
标签折径(Flat width)
Max.200mm
Max.200mm
Max.200mm
Max.200mm
纸筒内径(Inner tube Dia.)
3’’~10’’Adjustable
3’’~10’’Adjustable
5’’~10’’Adjustable
5’’~10’’Adjustable
标卷外径(Label Outer Dia.)
500mm
500mm
500mm
500mm
产品高度(Bottle height)
Max.320mm
Max.320mm
Max.320mm
Max.320mm
产品直径(Bottle Dia.)
30~124
30~124
30~100
30~100
适用瓶型(Bottle Style)
瓶口+瓶身
(Neck&Body Sleeving)
瓶口+瓶身
(Neck&Body Sleeving)
瓶身奇偶套
Odd-even sleeving
瓶身奇偶套
Odd-even sleeving
机器型号(Model)
矿泉水、饮料、啤酒、白酒、乳制品、化妆品、粮油、酱料、医药用品等液体，膏体，粉末，颗粒等包装
Mineral water, Beverage, Beer, Wine, Dairy products, Cosmetics, Cooking oil, Sauces, Medical and other liquids, paste, powder, granules packaging etc.
